Phono Pre-Amplifiers
Increase a very small signal from a phono cartridge up to ten thousand times of the original. Doing it with a non linear circuit, otherwise known as the RIAA curve.

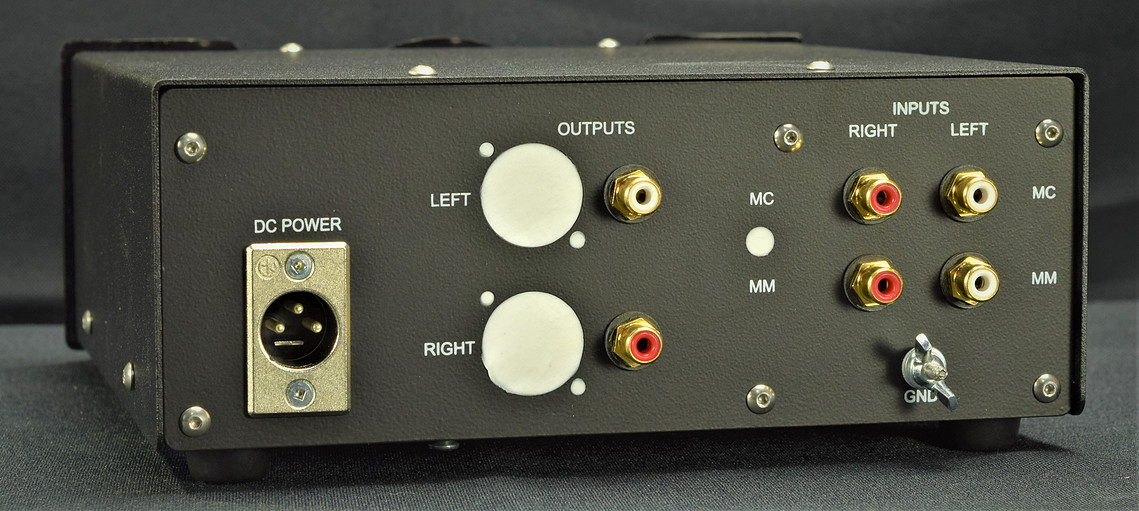

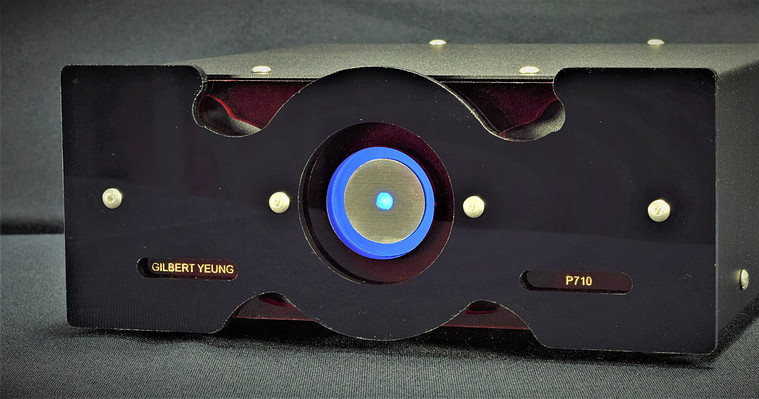

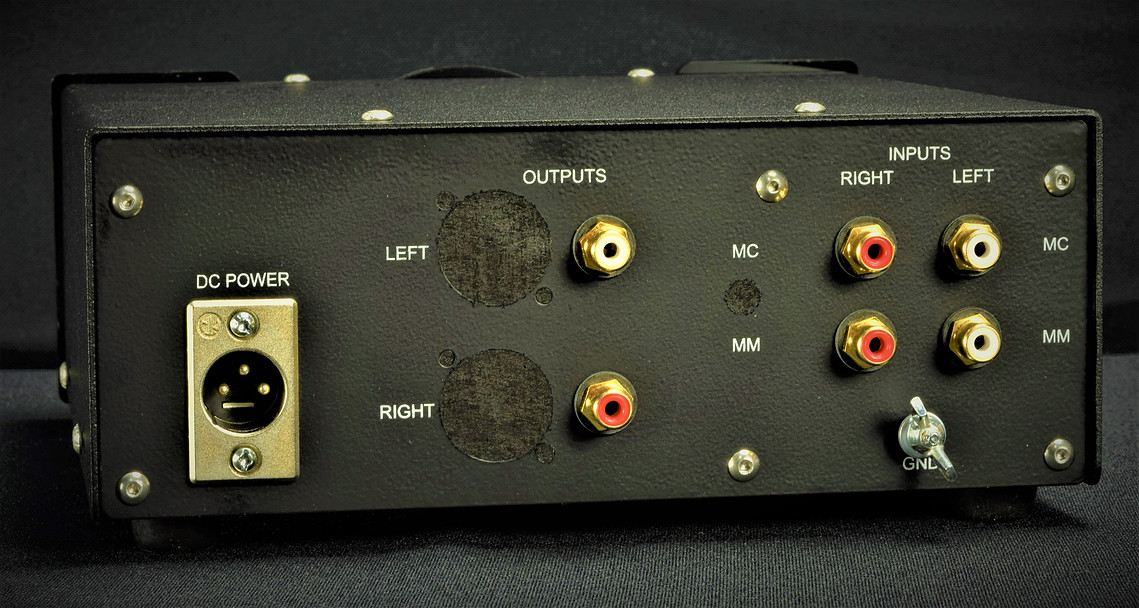

P710
MC (60db) and MM (38db) gain internally adjusted
Standard SE output, optional balanced output
Additional 15db of variable gain optional
Requires one of the G-series power supply units
Dimensions: 8.375"W, 3.375"H, 8.5"D
Click here for additional pictures of P710 Phonostage and its variations

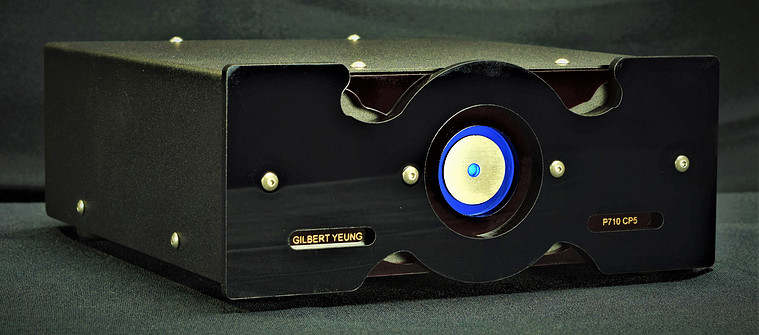

P710-CP5
MC (60db) and MM (38db) gain internally adjusted
Standard SE output, optional balanced output
Additional 15db of variable gain optional
Requires one of the G-series power supply units
P710-CP5 has built in SP Cap Pack 5 with additional 500,000uF of capacitance inside
Dimensions: 8.375"W, 3.375"H, 8.5"D
Click here for additional pictures of P710 Phonostage and its variations
George Taylor of Entracte Audio (our Markham, Ontario, Canada dealer) explains the features on the P710 and P710-CP5

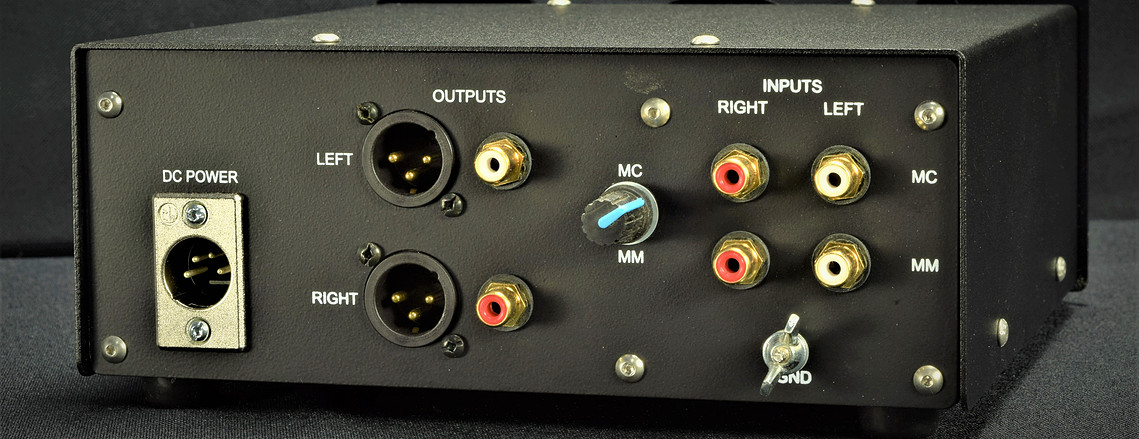

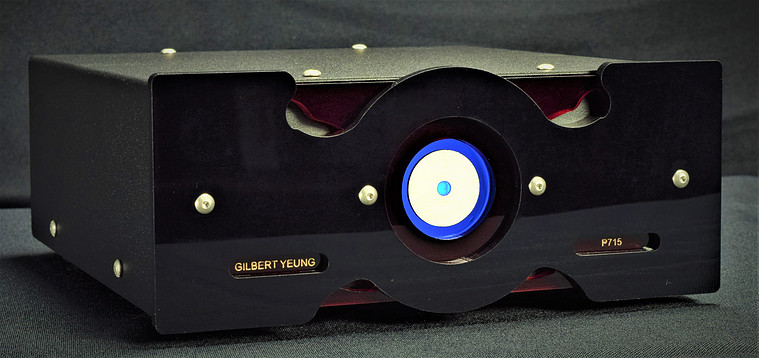

P715
0db to 75db variable gain
MC and MM input
Internal adjustable loading
SE and Balanced output
Requires one of the G series power supply units
SP Capacitor pack upgrades available
Dimensions: 8.375"W, 3.375"H, 8.5"D

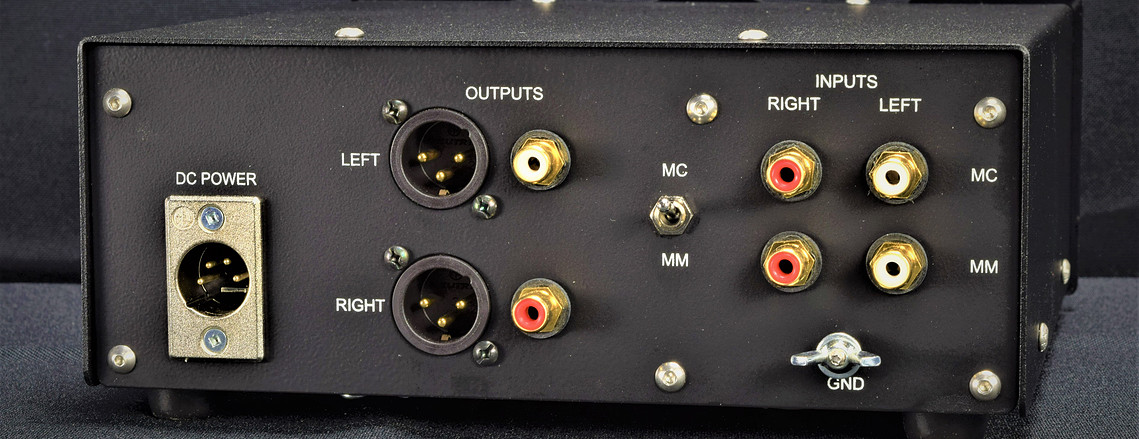

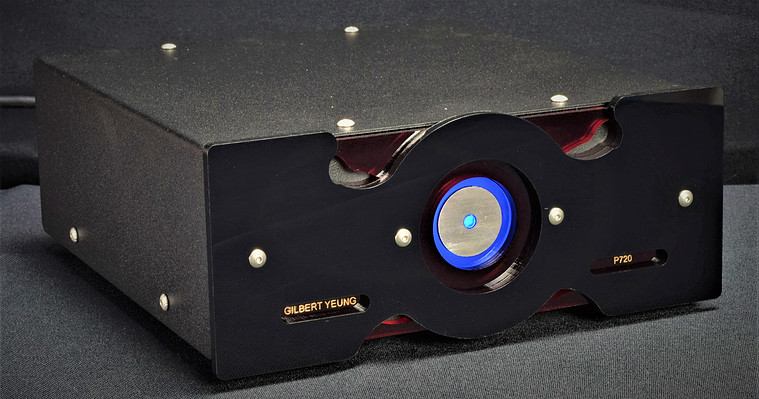

P720
MC gain from 61db to 87db in 5 steps
MM with 38db of gain
SE and Balanced output standard
User adjustable internal impedance loading
User selectable sub-sonic filter
Requires one of the G-Series Power Supply units
Dimensions: 8.375"W, 3.375"H, 8.5"D
